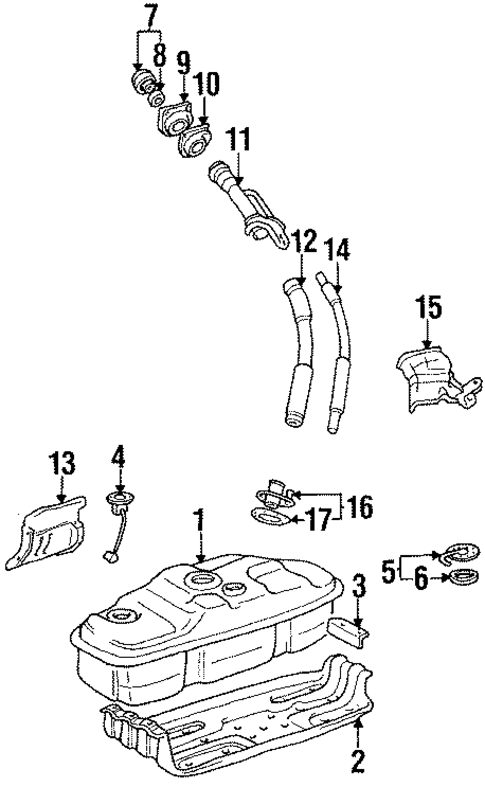

FUEL TANK in FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 1991 Toyota 4Runner

FUEL TANK in FUEL SYSTEM/FUEL SYSTEM COMPONENTS for 1991 Toyota 4Runner #1
14
  • HOSE - $34.99
11
  • INLET PIPE - $83.06
2
  • LOWER SHIELD - $135.07
12
  • FILLER PIPE - $60.38
5
  • COVER - $12.25
10
  • SHIELD - $12.73
    INNER
7
  • CAP - $19.75
17
  • LOWER PIPE GASKET - $2.48
13
  • PROTECTOR - $42.46
3
  • LOWER SHIELD BRACKET - $14.64
1
  • FUEL TANK - $433.62
4
  • SENDING UNIT - $114.36
9
  • SHIELD - $29.52
    OUTER
8
  • CAP GASKET - $11.20
6
  • COVER GASKET - $4.02
16
  • LOWER PIPE
15
  • PROTECTOR - $23.08
No. Part # Part # / Description Qty Req. List Price Price
1 77001-35981 77001-35981 / FUEL TANK

1 $601.06 $433.62
2 77161-35110 77161-35110 / LOWER SHIELD

1 $187.22 $135.07
3 77162-35060 77162-35060 / LOWER SHIELD BRACKET

1 $20.28 $14.64
4 83320-80136 83320-80136 / SENDING UNIT

1 $158.52 $114.36
5 77026-35060 77026-35060 / COVER

1 $16.98 $12.25
6 77179-16010 77179-16010 / COVER GASKET

1 $5.57 $4.02
7 77310-35080 77310-35080 / CAP

1 $27.37 $19.75
8 77316-16010 77316-16010 / CAP GASKET

1 $15.52 $11.20
9 77290-89102 77290-89102 / SHIELD

OUTER

1 $40.91 $29.52
10 77293-89103 77293-89103 / SHIELD

INNER

1 $17.64 $12.73
11 77201-35370 77201-35370 / INLET PIPE

1 $115.13 $83.06
12 77213-35230 77213-35230 / FILLER PIPE

1 $83.70 $60.38
13 77277-89101 77277-89101 / PROTECTOR

1 $58.84 $42.46
14 77408-35040 77408-35040 / HOSE

1 $48.50 $34.99
15 77407-35010 77407-35010 / PROTECTOR

1 $31.98 $23.08
16 77011-35140 77011-35140 / LOWER PIPE

1 - -
17 77178-35030 77178-35030 / LOWER PIPE GASKET

1 $3.45 $2.48
No. Part # Part # / Description Qty Req. List Price Price
N/A 77778-35020 77778-35020 / PROTECTOR BRACKET

1 $7.79 $5.62
No. Part # Part # / Description Qty Req. List Price Price
N/A 77380-14020 77380-14020 / CUT-OFF VALVE

1 $27.90 $20.12
